TPS Cable 2.5mm 2C+E 100M

Product Name

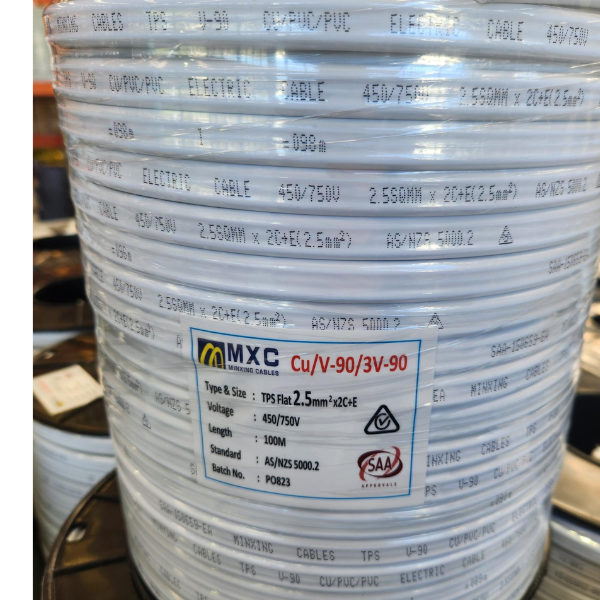

MXC 2.5mm² 2C+E Flat TPS Cable (White)

Product Description
The MXC 2.5mm² 2C+E flat thermoplastic‑sheathed (TPS) cable is designed with two insulated conductors plus one insulated earth conductor, all enclosed in a tough white PVC outer sheath. Complying with AS/NZS 5000.2 standards, it is suitable for fixed wiring in residential, commercial, and light industrial applications in New Zealand and Australia. This cable offers excellent durability, electrical performance, and heat resistance, ensuring safe and reliable service life.

Technical Specifications

• Construction: 2 insulated conductors + 1 insulated earth conductor (Twin & Earth flat type)

• Conductor Material: Annealed copper, stranded (Class 2)

• Conductor Size: 2.5 mm² (active/neutral), 2.5 mm² (earth)

• Insulation: V‑90 PVC, colours: Red (active), Black (neutral), Green/Yellow (earth)

• Sheath Material: White 5V‑90 PVC

• Rated Voltage: 450/750 V

• Temperature Rating: 75 °C continuous, up to 90 °C short‑term

• Overall Dimensions: Approx. 11.0 × 5.7 mm (flat profile)

• Standards Compliance: AS/NZS 5000.2, AS/NZS 1125

• Applications: Power and lighting circuits, fixed wiring in buildings

• Installation: Suitable for conduit, cable tray, and direct installation
