TPS Cable1.0mm 2C+E 100m White

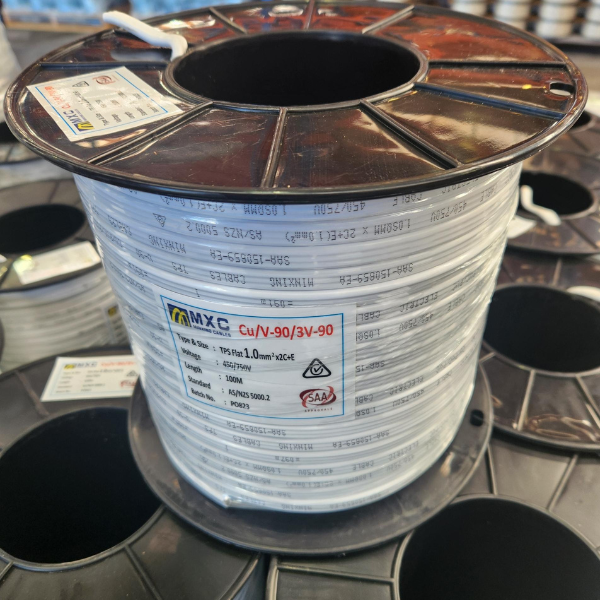

MXC 1.0mm² 2C+E Flat TPS Cable (White)

Product Description
The MXC 1.0mm² 2C+E flat thermoplastic‑sheathed (TPS) cable features two insulated conductors plus one insulated earth conductor, enclosed in a robust white PVC outer sheath. Complying with AS/NZS 5000.2 standards, this cable is suitable for fixed wiring in lighting and power circuits within residential, commercial, and light industrial installations across New Zealand and Australia. It offers excellent flexibility, electrical performance, and heat resistance, ensuring safe and reliable service over its lifetime.

Technical Specifications

• Construction: 2 insulated conductors + 1 insulated earth conductor (Twin & Earth flat type)

• Conductor Material: Annealed copper, stranded (Class 2)

• Conductor Size: 1.0 mm² (active/neutral), 1.0 mm² (earth)

• Insulation: V‑90 PVC, colours: Red (active), Black (neutral), Green/Yellow (earth)

• Sheath Material: White 5V‑90 PVC

• Rated Voltage: 450/750 V

• Temperature Rating: 75 °C continuous, up to 90 °C short‑term

• Overall Dimensions: Approx. 8.5 × 4.5 mm (flat profile)

• Standards Compliance: AS/NZS 5000.2, AS/NZS 1125

• Packaging: 100 m roll for efficient handling, storage, and installation

• Applications: Lighting and power circuits, fixed wiring in buildings

• Installation: Suitable for conduit, cable tray, and direct installation
