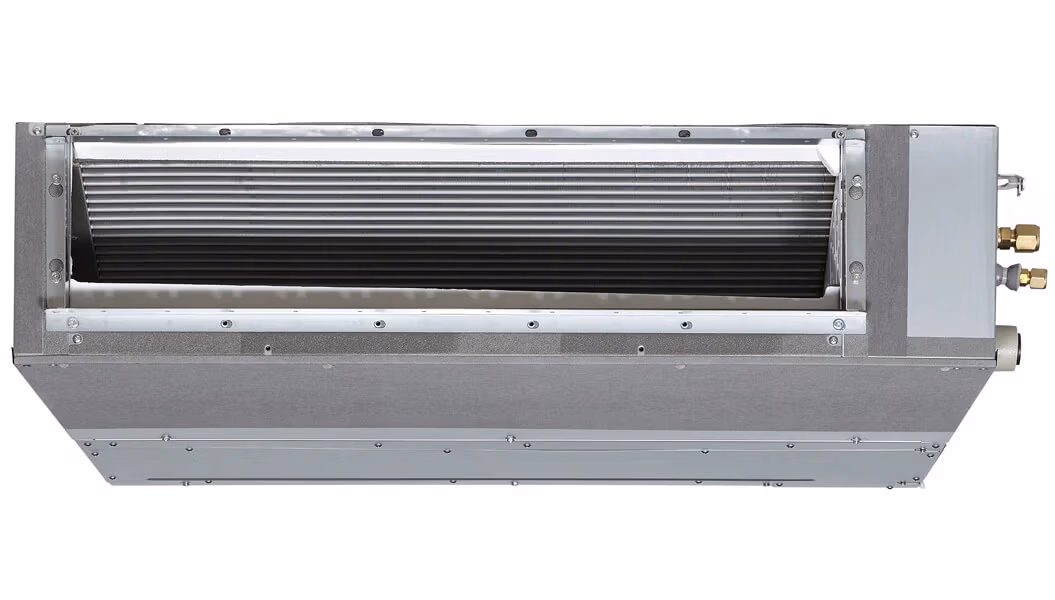

DAIKIN Slimline 10.0/11.2kW Multi-Phase Ducted Indoor

FBA – Single Phase FBA100BVMA Indoor Unit

Power Supply: 1 Phase, 220-240V, 50Hz

Rated Capacity (Capacity Range):

• Cool (kW): 10.0 (3.5-11.5)
• Heat (kW): 12.0 (3.5-14.0)

Power consumption: 2.79 / 2.92.

Indoor Unit

Fan airflow rate(H / M / L):

• 533 / 450 / 375 ℓ/s
• 32.0 / 27.0 / 22.5 m³/min

Fan external static pressure: Rated 50 (50-150)

Sound pressure level (H / M / L): 38.0 / 35.5 / 33.0 dBA

Sound power level (H): 66 dBA

Dimensions (HxWxD): 245mm x 1,400mm x 800mm

Machine weight: 47kg

Certified Operation Range:

• Cool (°CWB) / Heat(°CDB): 14 to 25 / 15 to 27

Outdoor Unit

Compressor: Hermetically sealed swing type

Motor output (kW): 3.30

Refrigerant charge (R-32): 3.20kg(Charged for 40m)

Sound pressure level: Cool (dBA) / Heat (dBA) /Night quiet mode (dBA): 49/50/45

Dimensions(HxWxD): 870mm x 1,100mm x 460mm

Machine weight: 95kg

Piping connections – Drain:

• Liquid (Flare) / Gas (Flare): Ø 9.5 / Ø 15.9

Max. interunit piping length: 85m (Equivalent length 100)

Max. installation level difference: 30m
